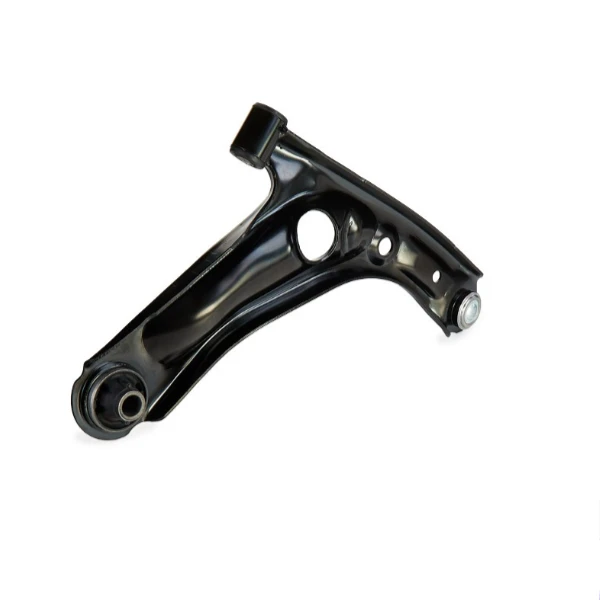

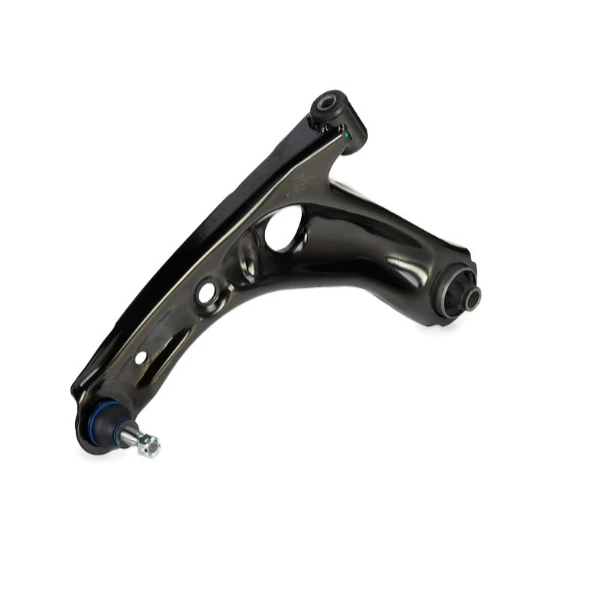

This high-quality front lower control arm (wishbone) is a direct OEM replacement for the front left side of select Citroën and Peugeot vehicles. Manufactured to meet or exceed original equipment standards, this complete assembly comes with a pre-installed ball joint and rubber bushings, restoring your vehicle's suspension geometry, steering precision, and ride comfort.
Key Features
Direct OEM Replacement
Engineered to match the fit, form, and function of the original part for a seamless installation.
Complete Assembly
Comes with a pre-installed ball joint and bushings, saving you time and labor costs compared to pressing out old components.
Robust Construction
Manufactured from high-quality Sheet Steel for exceptional durability and resistance to bending under stress.
Precision Engineering
Designed to restore factory-spec steering response and alignment, eliminating play in the suspension.
Technical Specifications
|
Specification |
Details |
|
OE Numbers |
3520.02, 1607304680, 1635775280 |
|
Placement on Vehicle |
Front Axle Left |
|
Material |
Sheet Steel |
|
Length |
380 mm |
|
Width |
360 mm |
|
Height |
80 mm |
|
Steering Arm Type |
Control Arm |
|
Function |
Control/Trailing Arm, wheel suspension |
|
Ball Joint Included |
Yes, Pre-Installed |
Structural Composition
Arm Body
Constructed from high-strength sheet steel, engineered to maintain structural integrity under dynamic suspension loads.
Bushings
Pre-installed rubber bushings that absorb road shocks and provide controlled compliance for optimal ride comfort and noise isolation.

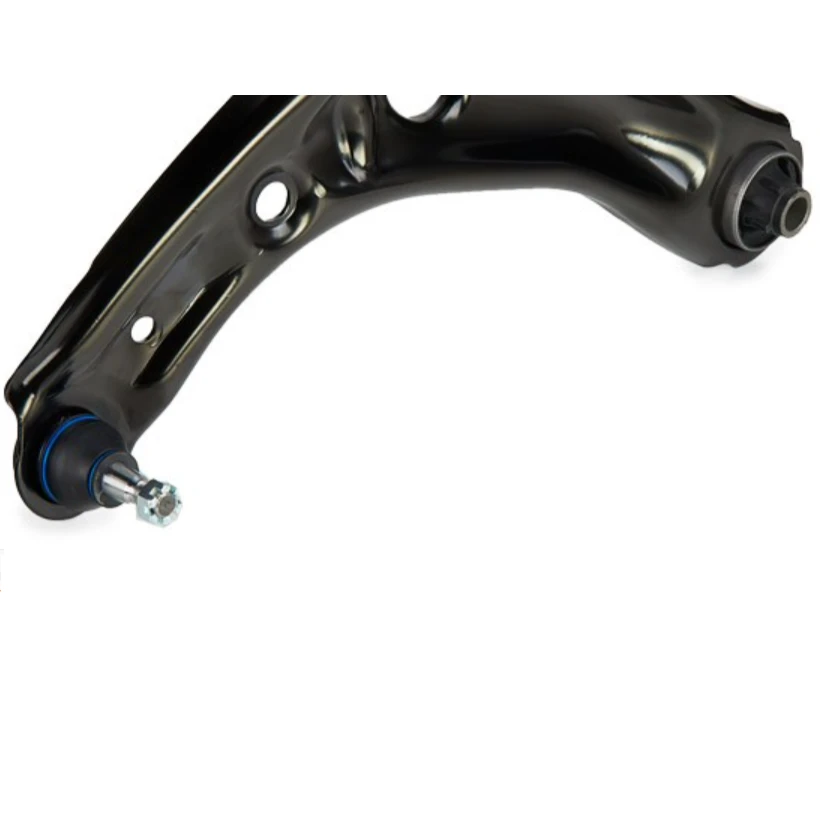

Ball Joint
An integrated ball joint assembly, pre-greased and sealed with a protective boot to ensure long-term reliability and smooth articulation.
Mounting Interface
Precision-engineered mounting points ensure an exact fitment to the subframe and steering knuckle.
Compatible Vehicle Models
|
Make |
Model |
Years / Details |
|
CITROËN |
C4, C5 |
Various Models |
|
PEUGEOT |
307 |
Various Models |
|
PEUGEOT |
308 |
(2007-2014) |
|
PEUGEOT |
407 |
(2004-2011) |
|
PEUGEOT |
508 |
(2011-2018) |
Installation and Usage Notes
- This front lower control arm fits Citroën and Peugeot models including C4, C5, 307, 308, 407, and 508. Verify the position (left or right) matches your vehicle before installation.
- Apply penetrating oil to all mounting bolts prior to removal, as they are often seized-especially in rust-prone regions.
- Install the rearward bushing bolt loosely first, then guide the ball joint stud into the steering knuckle. Use a floor jack to raise the knuckle if needed for alignment.
- Tighten all bolts with the vehicle's weight resting on the suspension (at ride height) to prevent premature bushing failure. Never fully torque bolts with the suspension hanging.
- Torque specifications (Reference): Ball joint pinch bolt to 44-59 ft-lbs (60-80 N·m); control arm mounting bolts to 81-96 ft-lbs (110-130 N·m). Always verify with a vehicle-specific service manual.
- Replace all self-locking nuts with new ones during installation.
- A professional wheel alignment is mandatory after installation to restore proper suspension geometry and prevent uneven tire wear.
FAQ Module
Q: Which vehicles is this control arm compatible with?
A: This front lower control arm fits Citroën and Peugeot models including C4, C5, 307, 308, 407, and 508. Always verify fitment with your specific vehicle.
Q: What are the OE cross references?
A: OE numbers include 3520.02, 1607304680, 1635775280, and 3520Q2. Also referenced as 480690H010 and Delphi TC1911 (Front Left) or TC1912 (Front Right).
Q: What are the torque specifications?
A: Torque specifications (reference): Ball joint pinch bolt to 44-59 ft-lbs (60-80 N·m); control arm mounting bolts to 81-96 ft-lbs (110-130 N·m). Always verify with your vehicle-specific service manual.
Q: Is a wheel alignment required after installation?
A: Yes, a professional wheel alignment is mandatory after replacing any control arm to restore proper suspension geometry and prevent uneven tire wear.
Q: What are the physical dimensions of this control arm?
A: Width: 360 mm, Height: 80 mm, Length: 380 mm.
Q: What material is this control arm made from?
A: This control arm is constructed from high-strength sheet steel
Packaging and Shipping Module
- Product Packaging
Each control arm is carefully packaged to ensure its arrival intact:
Protective Packaging: The control arm is first wrapped in a moisture-proof bag to prevent corrosion during storage and transportation. This protects the metal surface from moisture and humidity.
Foam Lining: This foam acts as a shock absorber, cushioning the control arm from impacts and vibrations during transportation.
Sturdy Carton: The control arm is placed in a high-quality corrugated carton, with foam padding filling the gaps to ensure a tight fit and prevent movement within the packaging.
Carton Labeling: Each carton is labeled with the product's original manufacturer's number (545011KA0B or 54500-4EA0A), barcode, and basic product information for easy identification.
- Shipping Information
International Shipping: We ship worldwide through experienced and reliable freight companies specializing in automotive parts. International shipping times vary depending on the destination and the chosen mode of transport.
Bulk Orders: For wholesale or bulk orders, we offer pallet shipping options. We can calculate the approximate number of control arms that a standard 20ft, 40ft container, or 40ft high cube (40HQ) container can accommodate, thus optimizing shipping costs.
Shipping Insurance: We recommend purchasing shipping insurance for all orders to protect goods from loss or damage during transit.
Receiving and Inspecting Goods: Please inspect the package immediately upon receipt. If there is any damage to the outer packaging, please take photos before opening and contact us immediately.
